Diamondback
Catch 1 Mountain Bike

Be the first to review

Out of Stock

Don't worry though, we have a lot more Complete Hardtail Bikes in stock than that.

Shop Similar Products

Why We Like The Catch 1 Mountain Bike

With all the mega-expensive mountain bikes out there it's nice to see the Diamondback Catch 1 hit the shelves. Making trail-shredding a priority is the goal with this new iteration of the Catch 1, as the bike comes with massive 27.5 x 2.8in tires for maximum grip and confidence. We use the Catch 1 to get into new terrain no matter what part of the country we're in, knowing the Level Link suspension platform will get us there with efficient pedaling and great bump absorption.


Geometry with the Catch 1 truly makes this a proper trail bike, giving us a frame with geo that's suited for both flowy singletrack and technical terrain. The bike is adorned with a 68-degree head-tube angle, steep for modern times, but until recently bikes with these angles would be shredding most local mountains. The steep headtube angle lends the bike to be great at tight and twisty bits of the trail while the 130mm fork soaks up big hits along the way.


Kit on the Catch 1 is highlighted with the SRAM NX Eagle drivetrain. Offering fast and precise shifts, the 12-speed range brought by the bike gets us up and over the steepest of climbs. Suspension duties are supported by the steadfast Suntour shock and fork, offering different adjustment options depending on the trail. The Catch 1 offers us a machine that'll get us where we're going quickly, confidently, and ready to take on tougher trail as we progress our skills.


*Due to unprecedented demand in the global supply chain and the bike industry over the last 18 months, material weight and exact components are subject to change. We are working diligently to keep tech specs updated, and any adjustments will be minor. If you have any questions, reach out to a Gearhead by chatting online or calling 1-888-276-7130.


Details

  • Full-suspension trail bike for taming the mountains
  • Aluminum frame construction with Level Link suspension
  • Suntour fork and shock absorb bumps and vibration
  • 2.8in tires are forgiving and offer tons of grip
  • Dropper post gets the saddle out of the way during descents

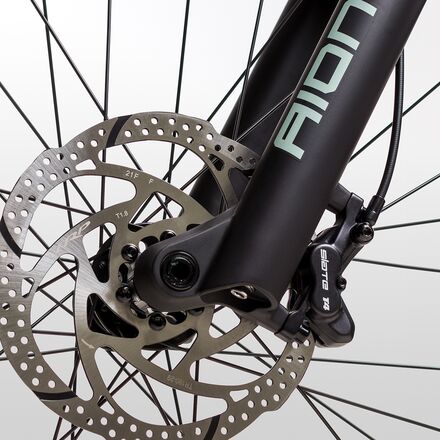

  • TRP brakes with large 180mm rotors for great stopping power
  • Modern frame details featuring boost spacing and a tapered head tube
  • This bike does not come with tubeless tires or tubeless valve stems
  • Item #DMB1WU0
Frame Material
aluminum
Suspension
Level Link
Rear Shock
Suntour Edge R
Rear Travel
130mm
Fork
SR Suntour Aion
Front Travel
130mm
Headset
FSA No. 57
Shifters
SRAM SX Eagle
Rear Derailleur
SRAM SX Eagle
ISCG Tabs
ISCG-05
Crankset
SRAM SX Eagle
Chainring Sizes
32t
Crank Arm Length
[small] 170mm, [medium, large, x-large] 175mm
Bottom Bracket
SRAM Powerspline BSA
Cassette
SRAM PG1210
Cassette Range
11-50t
Chain
SRAM SX Eagle
Brakeset
TRP Slate
Brake Type
2-piston hydraulic
Rotors
TRP Slate X2
Handlebar
DB35 Aluminum
Handlebar Rise
15mm
Handlebar Width
760mm
Grips
DB Lock-on
Stem
DB35 Aluminum
Stem Length
35mm
Saddle
WTB Koda Comp
Seatpost
Kindshock EXA Form 900i 31.6mm dropper
Seatpost Travel
[small, medium] 435mm, [large, x-large] 485mm
Wheelset
Diamondback Blanchard 38R
Hubs
Diamondback aluminum sealed cartridge bearing
Front Axle
15mm x 110mm
Rear Axle
12mm x 148mm
Tire Clearance
27.5 x 2.8in
Tires
WTB Vigilante
Tire Size
27.5in x 2.8in
Pedals
DB Aluminum platform
Extras
chainstay protector, tool kit, DB shock pump, DB mud guard, spare derailleur hanger
Claimed Weight
[medium] 36.5lb
Activity
trail
Manufacturer Warranty
[frame] 5 years, [swingarm, suspension] 1 year
